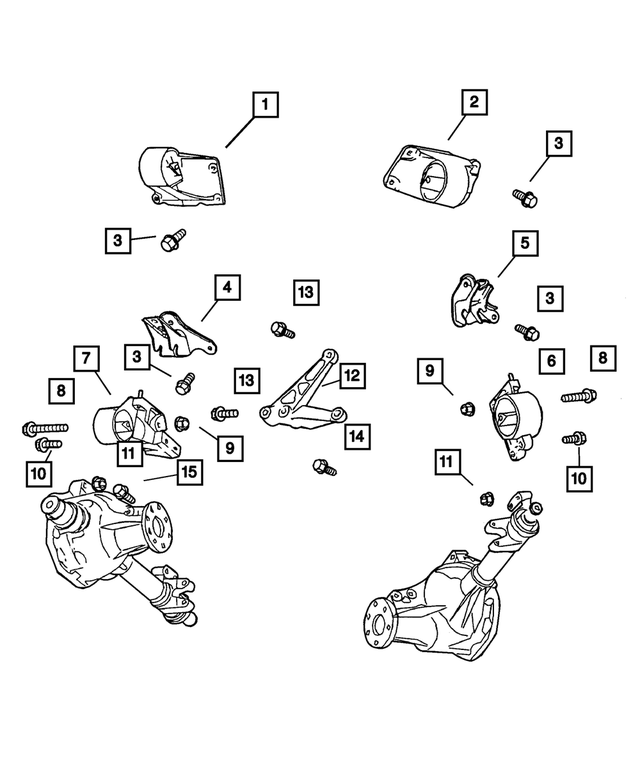

Engine Mounting for 2001 Dodge Durango
No.
Part # / Description / Price
3
Hex Head Locking Bolt And Washer, Mounting
MSRP $9.35
Hex Head Locking Screw And Washer
.437-14x1.250. .437-14x1.25. Dust Shield to Clutch Housing. Front Drive Shaft to Transfer Ca. Support Bracket to Insulator. Drive Shaft to Transfer Case Yoke.
4
Hex Flange Head Bolt
MSRP $11.40
Hex Head Bolt
M12-1.75x125. Trans C/Member To Frame. Crossmember to Frame. Crossmember Attaching. M12x1.75x135.
5
6
Flange Lock Nut
M10x1.50. As Required. Upper Intermediate Shaft to Steering Column. Outer Timing Cover To Cylinder Block. Attach Elbow to Cyl Head. Bracket Attach. Timing Belt Cover Outer to Inner. Support Bracket.
Not For Sale
9
Hex Flange Head Bolt, Mounting
MSRP $3.80
Hex Head Screw And Washer
Engtine Mount To Cylinder Block. M10X1.50X28.00. [Mega Cab]. M10x1.5x28. Insulator Assy. M10X1.50X28.00. [Quad Cab]. M10X1.50X28.00. [Regular Cab]. Engine Mount Bracket To Block.
10
Hex Flange Nut
MSRP $6.25
Line at Condenser. Belt Guide Mounting. Master Cylinder to Booster. Lateral Brace to Power Takeoff Unit. Tube Attaching. Canister to Crossmember. M8x1.25. Canister to Bracket. Rhd.
No.
Part # / Description / Price
3
Hex Flange Head Bolt, Mounting
MSRP $3.80
Hex Head Screw And Washer
Engtine Mount To Cylinder Block. M10X1.50X28.00. [Mega Cab]. M10x1.5x28. Insulator Assy. M10X1.50X28.00. [Quad Cab]. M10X1.50X28.00. [Regular Cab]. Engine Mount Bracket To Block.
8
Hex Head Bolt And Washer, Mounting
Hex Head Bolt And Washer
M12x1.75x80. Engine Mount Bracket To Engine Mount.
Not For Sale
10
Hex Flange Head Bolt
MSRP $11.30
Hex Flange Bolt
M12x1.75x85.00. Front Differential Bushing to Cradle. UCA to Body. Rear Lower Control Arm to Frame. Control Arm Crossmember Attaching.
13
Hex Head Screw And Washer, Mounting
MSRP $7.60
Hex Head Screw And Washer
M10x1.5x40. Pinion Nose To Transmission. Camshaft Sprocket. Strut To Transmission.
15
Hex Head Bolt And Coned Washer, Mounting
Hex Head Screw And Washer
Shock Tower. Engine Mount To Axle Assembly. Pinion Nose Strut To Pinion Nose. Engine Bracket to Pinion Nose. Pinion Nose Bracket To Pinion. Insulator Assy to Axle. Attaches To Item 13. M12x1.75x60.00. Insulator Assembly to Axle - Left. Pinion Nose To Transmission.
Discontinued
No.
Part # / Description / Price
3
Hex Head Locking Bolt And Washer, Mounting
MSRP $9.35
Hex Head Locking Screw And Washer
.437-14x1.250. .437-14x1.25. Dust Shield to Clutch Housing. Front Drive Shaft to Transfer Ca. Support Bracket to Insulator. Drive Shaft to Transfer Case Yoke.
4
Hex Flange Head Bolt
MSRP $11.40
Hex Head Bolt
M12-1.75x125. Trans C/Member To Frame. Crossmember to Frame. Crossmember Attaching. M12x1.75x135.
5
6
Flange Lock Nut
M10x1.50. As Required. Upper Intermediate Shaft to Steering Column. Outer Timing Cover To Cylinder Block. Attach Elbow to Cyl Head. Bracket Attach. Timing Belt Cover Outer to Inner. Support Bracket.
Not For Sale
9
Hex Flange Head Bolt, Mounting
MSRP $3.80
Hex Head Screw And Washer
Engtine Mount To Cylinder Block. M10X1.50X28.00. [Mega Cab]. M10x1.5x28. Insulator Assy. M10X1.50X28.00. [Quad Cab]. M10X1.50X28.00. [Regular Cab]. Engine Mount Bracket To Block.
10
Hex Flange Nut
MSRP $6.25
Line at Condenser. Belt Guide Mounting. Master Cylinder to Booster. Lateral Brace to Power Takeoff Unit. Tube Attaching. Canister to Crossmember. M8x1.25. Canister to Bracket. Rhd.
11
Dust Structural Cover
MSRP $128.00
Bedplate Cover
Structural Collar & Bedplate Cover. Cover - Dust Bedplate.
No.
Part # / Description / Price
9
Hex Head Bolt And Washer, Mounting
Hex Head Bolt And Washer
M12x1.75x80. Engine Mount Bracket To Engine Mount.
Not For Sale
11
Hex Flange Head Bolt
MSRP $11.30
Hex Flange Bolt
M12x1.75x85.00. Front Differential Bushing to Cradle. UCA to Body. Rear Lower Control Arm to Frame. Control Arm Crossmember Attaching.
14
Hex Head Bolt And Coned Washer, Mounting
Hex Head Screw And Washer
Shock Tower. Engine Mount To Axle Assembly. Pinion Nose Strut To Pinion Nose. Engine Bracket to Pinion Nose. Pinion Nose Bracket To Pinion. Insulator Assy to Axle. Attaches To Item 13. M12x1.75x60.00. Insulator Assembly to Axle - Left. Pinion Nose To Transmission.
Discontinued
15
Hex Head Screw And Washer
MSRP $12.75
M12x1.75x155. Engine Mounting Bracket to Rail. Mounting Bracket to Rail (2 Left, 1 Right). To Transmission Crossmember.
17
Hex Head Screw And Washer
MSRP $9.70
Clutch Housing to Cylinder Block. Pinion Nose Bracket to Transmission Outboard. Cylinder Block to Trans Case. 0.437-14x2.00. Block to Case, .437-14 x 2.00. Case Mtg., .437-14x2.00. Clutch Housing to Engine Dowel. Clutch Housing to Block Upper.
