Engine Oiling, Oil Pan and Indicator (Dipstick) for 2026 Ram ProMaster 1500
Mopar Hex Head Bolt And Coned Washer
M8X1.25X45.00. Upper Oil Pan To Cylinder Block
Mopar M6X1.00X25.00. Rear Main Crankshaft Oil Seal Retainer To Cylinder Block
Mopar Hex Head Bolt And Coned Washer
M6X1.00X20.00. Upper Oil Pan To Rear Oil Seal Retainer
Mopar 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
Mopar IMPORTANT Different Engine Plants Used Different Oil Filter Adapter Assemblies With Different Temperature/Pressure Sensors At The Same Time In Production. Refer To Illustration 105 for Location of Engine Identification Plant Code. With Engine Plant Code TPHP6
Mopar Pressure & Temperature To Oil Adapter. Pressure & Temperature At Oil Adapter.
Mopar Hex Head Bolt And Coned Washer
M6X1.00X25.00. Oil Pump To Cylinder Block

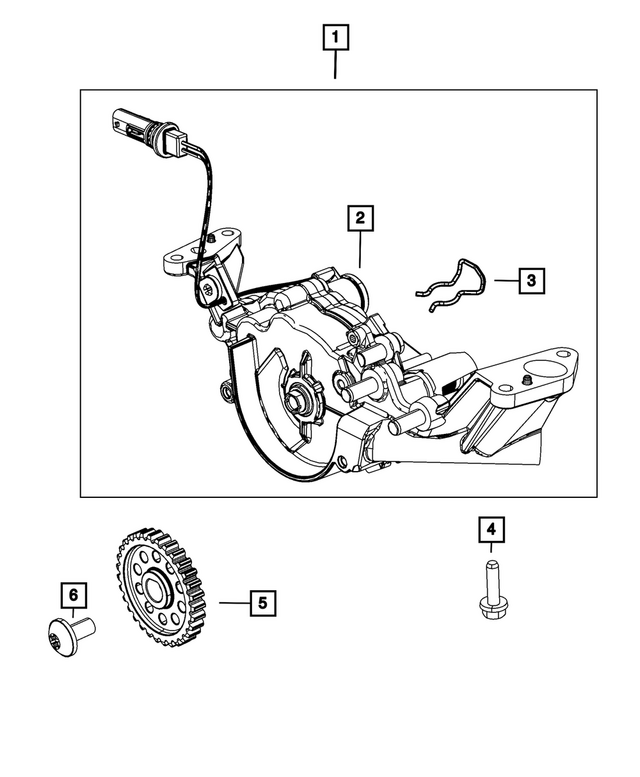

Mopar Includes Sprocket, Oil Pump Drive Chain, Oil Pump Drive Sprocket, Crankshaft Drive
Mopar Recessed Torx Head Bolt And Washer
M8X1.25X16.00. Oil Pump Drive Gear
