Home 2024 Jeep Wrangler Willys 3.6L V6 - Gas Engine Oiling, Oil Pan and Indicator (Dipstick)

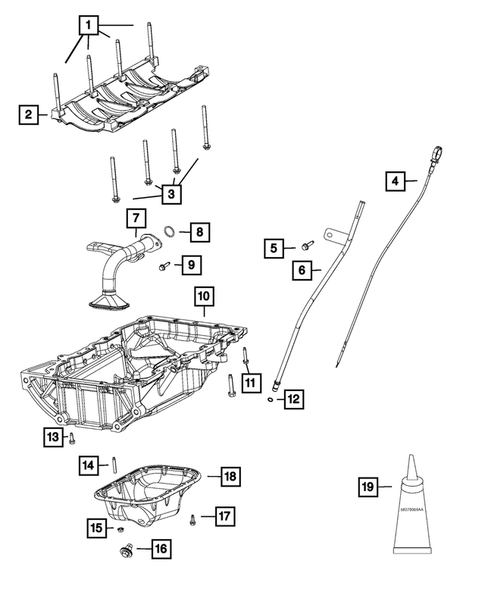

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2024 Jeep Wrangler

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2024 Jeep Wrangler #2

No.

Part # / Description / Price

6511874AA - Engine: Hex Flange Head Bolt for Mopar Image image

Hex Flange Head Bolt, Mounting, Inner

MSRP $6.70

6511874AA

Mopar

Hex Flange Head Bolt

M11X1.50X94.00. Main Bearing Cap To Cylinder Block

View Details

Windage Tray

MSRP $66.45

68225439AB

Mopar

View Details

Hex Flange Head Bolt, Mounting, Outer

MSRP $4.90

6509565AA

Mopar

Hex Flange Head Bolt

M8x1.25x97.00. Main Bearing Cap To Cylinder Block

View Details

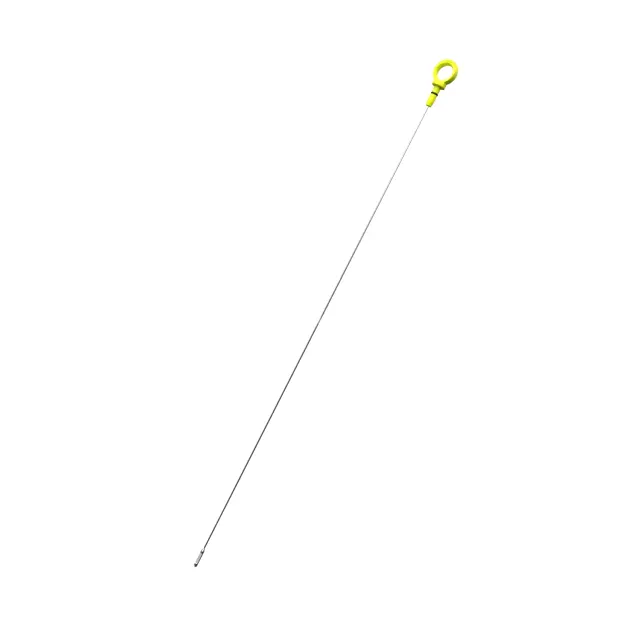

Engine Oil Level Indicator

MSRP $18.35

68325245AA

Mopar

View Details

Hex Flange Head Bolt, Mounting

MSRP $3.65

6105048AA

Mopar

Hex Flange Head Bolt

M8x1.25x20.00. Engine Oil Level Indicator Tube To Intake Manifold

View Details

Engine Oil Indicator Tube

MSRP $22.10

68291413AA

Mopar

View Details

Oil Pickup Tube

MSRP $52.05

68323867AA

Mopar

Includes O Ring. Includes O Ring

View Details

Oil Pick Up Tube O Ring

MSRP $11.25

5184908AB

Mopar

28.24mm ID.

View Details

Hex Flange Head Bolt

MSRP $8.80

6105038AA

Mopar

M6X1.00X25.00. Rear Main Crankshaft Oil Seal Retainer To Cylinder Block

View Details

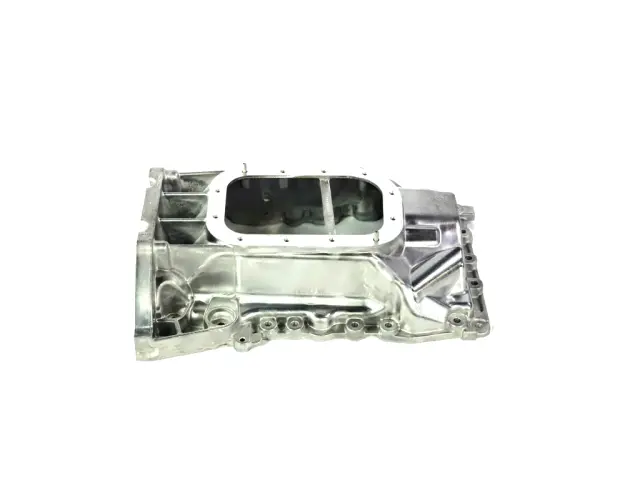

68313581AB - Engine: Engine Oil Pan for Mopar Image image

Engine Oil Pan, Upper

MSRP $249.00

68313581AB

Mopar

Engine Oil Pan

Upper.

View Details

6509231AA - Engine: Hex Head Bolt And Coned Washer for Mopar Image image

Hex Head Bolt And Coned Washer, Mounting

MSRP $3.45

6509231AA

Mopar

Hex Head Bolt And Coned Washer

M8X1.25X45.00. Upper Oil Pan To Cylinder Block

View Details

Engine Oil Indicator Tube O Ring

MSRP $5.95

5047077AB

Mopar

View Details

Hex Head Bolt And Coned Washer, Mounting

MSRP $5.20

6509210AA

Mopar

Hex Head Bolt And Coned Washer

M6X1.00X20.00. Upper Oil Pan To Rear Oil Seal Retainer

View Details

Double Ended Stud, Mounting

6509507AA

Mopar

Double Ended Stud

M6x1.0x38. Lower Oil Pan To Upper Oil Pan

View Details

Hex Nut, Mounting

5097674AA

Mopar

Hex Nut

M6. Harmonic Balancer Cover To Cylinder Block

View Details

Oil Drain Plug

MSRP $14.45

6513414AA

Mopar

[M18 x 1.0]. [M14x1.50x21.50]. Used Up To 05/22/2020. -NAM ( with Out Mexico).

View Details

68313584AD - Engine: Engine Oil Pan for Mopar Image image

Engine Oil Pan, Lower

MSRP $92.85

68313584AD

Mopar

Engine Oil Pan

Includes Drain Plug. Includes Drain Plug

View Details

68082860AB - Engine: Rtv Gray Sealer for Mopar Image image

Rtv Gray Sealer ²

MSRP $32.80

68082860AB

Mopar

Engine Oil Pan to Cylinder Block

View Details

² This part contains hazardous materials. Extra shipping costs apply.

No.

Part # / Description / Price

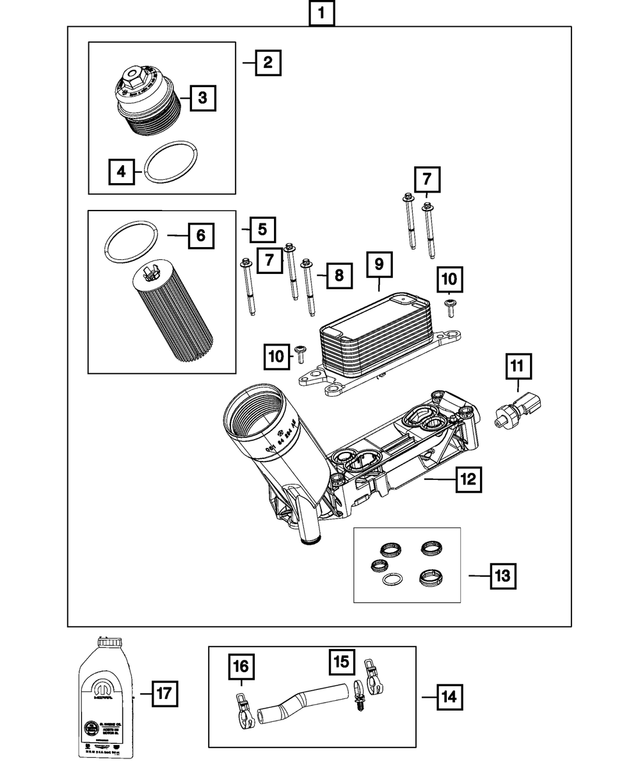

Engine Oil Filter Adapter

MSRP $232.00

68596318AB

Mopar

IMPORTANT Different Engine Plants Used Different Oil Filter Adapter Assemblies With Different Temperature/Pressure Sensors At The Same Time In Production. Refer To Illustration 105 for Location of Engine Identification Plant Code. With Engine Plant Code TPHP6

View Details
