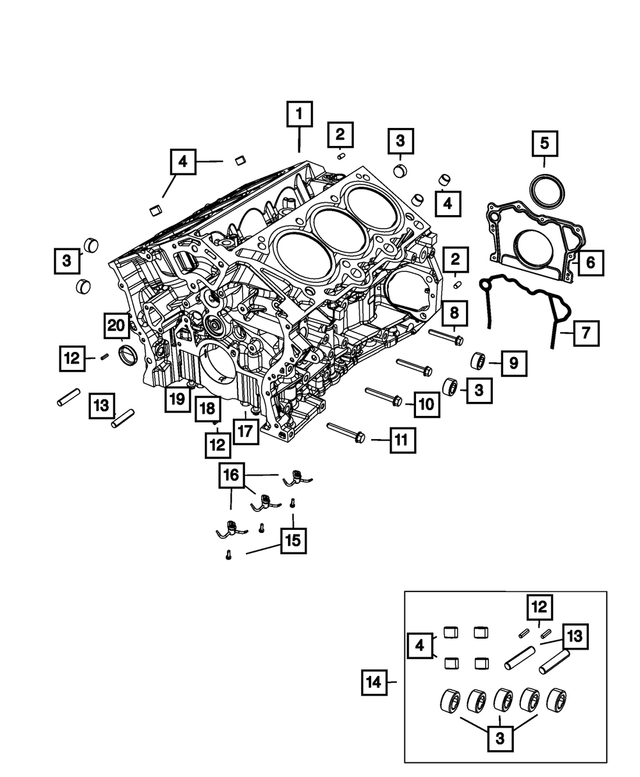

Cylinder Block for 2023 Jeep Gladiator
Mopar M24X1.50. Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Oil Gallery
Mopar Pipe Plug
M24X1.50. Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Oil Gallery
Mopar Dowel Pin
Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Cylinder Heads To Cylinder Block
Mopar Hex Head Bolt And Coned Washer
M6X1.00X20.00. Upper Oil Pan To Rear Oil Seal Retainer
Mopar Hex Head Bolt
M8X1.25X40.00. Main Bearing Crossbar To Cylinder Block
Mopar Hex Head Bolt
M8X1.25X58.00. Main Bearing Cross To Cylinder Block
Mopar Dowel Pin
Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Timing Chain Case Cover To Cylinder Block
Mopar Pin
Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Timing Chain Guide
Mopar Pan Head Bolt
M5x.08x16.00. Piston Oil Cooler Jet To Cylinder Block
Mopar Hex Flange Head Bolt
M11X1.50X94.00. Main Bearing Cap To Cylinder Block
Mopar Hex Flange Head Bolt
M8x1.25x97.00. Main Bearing Cap To Cylinder Block
Mopar Core Plug
1.25 Diameter. [1 1/4] With Zinc Plate. Water Jacket Core
