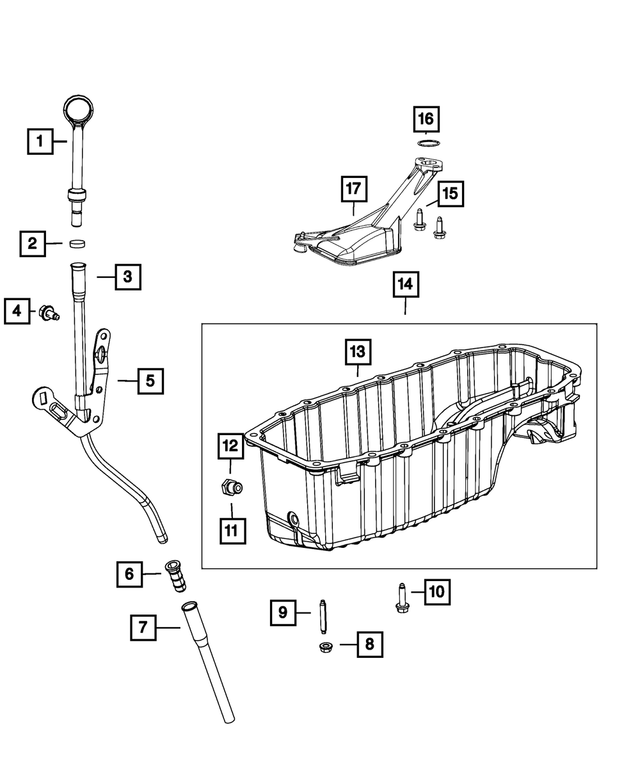

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2016 Fiat 500L
No.
Part # / Description / Price
4
Hex Flange Head Bolt, Mounting
Mopar
MSRP $2.25
$1.50
Mopar Screw And Washer
M6x1.00x14.00. Tube To Camshaft Housing
10
Hex Flange Head Bolt, Mounting Mopar
MSRP $3.65
$2.47
Mopar Hex Flange Head Bolt
M6X1.00X25.00. Lower Timing Cover To Oil Pump
11
Oil Drain Plug Mopar
MSRP $15.85
$10.93
Mopar 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
2 This part contains hazardous materials. Extra shipping costs apply.
No.
Part # / Description / Price
10
Hex Head Bolt And Coned Washer, Mounting Mopar
MSRP $5.20
$3.51
Mopar M6X1.00X32.00. Oil Pump To Lower Cylinder Block
11
Hex Head Bolt And Coned Washer, Mounting Mopar
MSRP $4.40
$2.93
Mopar Bolt, Mounting
M6X1.00X22.00. Oil Pump To Cylinder Block
No.
Part # / Description / Price
9
Hex Flange Head Bolt, Mounting, Upper And Lower Mopar
MSRP $2.10
$1.38
Mopar Hex Flange Head Bolt
M6x1.00x16.00. Timing Belt Cover To Side
