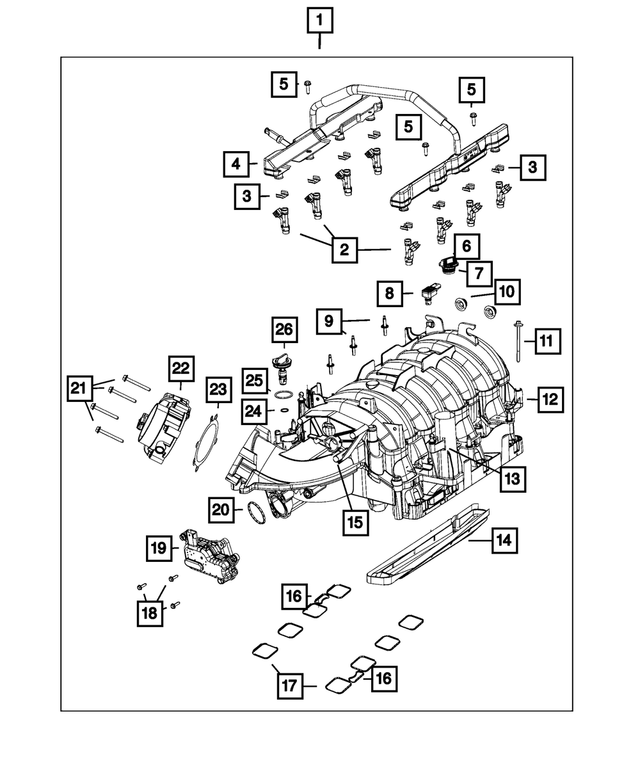

Manifolds and Vacuum Fittings for 2015 Ram 3500
Mopar M5.74X1.81X21.50. Intake Short Running Valve Actuator To Intake Manifold
Mopar M6X1.00XM5.74X1.81X42.38. Fuel Rail To Intake Manifold
Mopar M6X1.00X104.00. Intake Manifold To Cylinder Head
Mopar M5.74X1.81X56.00. Throttle Body To Intake Manifold
Mopar NOT Included With Long Block Engine Install Kit
Mopar Large O Ring Upper Half Of PCV Valve Is Only Serviced.Small O Ring Lower Half Is Serviced With PCV Only
Mopar M5.74X1.81X21.50. Intake Short Running Valve Actuator To Intake Manifold
Mopar M6X1.00XM5.74X1.81X42.38. Fuel Rail To Intake Manifold
Mopar M6X1.00X104.00. Intake Manifold To Cylinder Head
Mopar M5.74X1.81X56.00. Throttle Body To Intake Manifold
Mopar NOT Included With Long Block Engine Install Kit
Mopar Large O Ring Upper Half Of PCV Valve Is Only Serviced.Small O Ring Lower Half Is Serviced With PCV Only
Mopar NOT Included With Long Block Engine Install Kit
Mopar NOT Included With Long Block Engine Install Kit
Mopar Hex Flange Head Bolt, Mounting
.375-16X2.50. Front Exhaust Y-Pipe To Exhaust Manifolds
Mopar ID=M10.00 OD=20.00 THK=2.70. Exhaust Manifold To Cylinder Head
Mopar M8X1.25X48.50. Exhaust Manifold To Cylinder Head Manifold Ports Five And Six
Mopar Hex Flange Head Bolt, Mounting
M8X1.25X48.50. Exhaust Manifold. Use Up To 06/04/2018
Mopar Exhaust Manifold Shield, Left Side
Use Up To 06/04/2018
Mopar Hex Flange Nut, Mounting
M8x1.25. Exhaust Manifold To Cylinder Head. EGR Tube To Exhaust Manifold
Mopar M6X1.00. Exhaust Manifold Heat Shield And Engine Oil Indicator Tube To Exhaust Manifold
Mopar Double Ended Stud, Mounting
M8X1.25XM6X1.00X75.50. Exhaust Manifold. Use Up To 06/04/2018
Mopar IMPORTANT NOTE:PAY CLOSE ATTENTION TO UP TO AND AFTER DATES AND QTY FOR BOLTS AND STUDS
Mopar NOT Included With Long Block Engine Install Kit
Mopar Hex Flange Head Bolt, Mounting
.375-16X2.50. Front Exhaust Y-Pipe To Exhaust Manifolds
Mopar Hex Flange Nut, Mounting
M8x1.25. Exhaust Manifold To Cylinder Head. EGR Tube To Exhaust Manifold
Mopar M6X1.00. Exhaust Manifold Heat Shield And Engine Oil Indicator Tube To Exhaust Manifold
Mopar Exhaust Manifold Shield
Use Up To 06/04/2018
Mopar Double Ended Stud, Mounting
M8X1.25XM6X1X75.50. Side. Use Up To 06/04/2018. Exhaust Manifold
Mopar Double Ended Stud, Mounting Left Side
M8X1.25XM6X1.00X75.50. Exhaust Outlet End Of The Manifold. Exhaust Manifold To Cylinder Head Exhaust Outlet End Of The Manifold
Mopar Hex Flange Head Bolt, Mounting Left Side
M8X1.25X48.50. Exhaust Manifold. Use Up To 06/04/2018
Mopar Double Ended Stud, Mounting Right Side
M8X1.25XM6X1.00X75.50. Exhaust Manifold. Use Up To 06/04/2018
Mopar M8X1.25X48.50. This size bolt is only used for applications that use item 3 and 13 Tie Bars.. Exhaust Manifold To Cylinder Head
