Manifolds and Vacuum Fittings for 2015 Ram 1500

Vehicle

2015 Ram 1500

Change Vehicle

Categories

Browse Categories
Manifolds and Vacuum Fittings for 2015 Ram 1500 #0 Manifolds and Vacuum Fittings for 2015 Ram 1500 #1

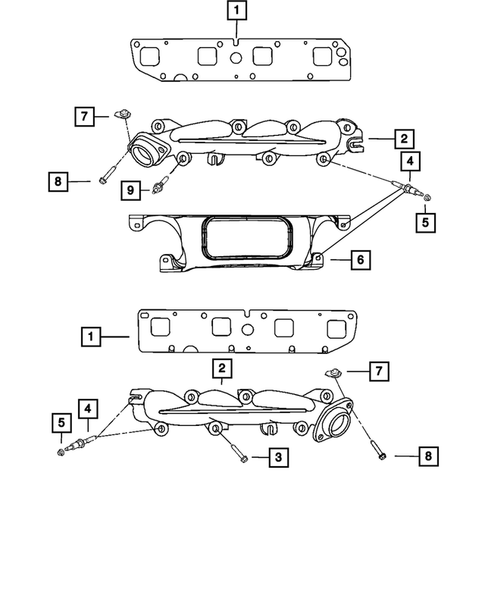

Manifolds and Vacuum Fittings for 2015 Ram 1500 #0
No.
Part # / Description / Price
1
Exhaust Manifold Gasket, Right Side
MSRP $31.35

Right Side. NOT Included With Long Block Engine Install Kit. Important note:pay close attention to up to and after dates and qty for bolts and studs.

2
Exhaust Manifold, Left Side
MSRP $269.00

Nine (9) Hole Type Use Up To 03/05/2018. Use For 03/05/2018 And After. Left Side. Use For 03/05/2018 And Later.

3
Hex Flange Head Bolt, Mounting
MSRP $3.45

Use For 06/04/2018 And After. M8x1.25x48.50. Side. Use Up To 06/04/2018. Middle. Right And Left. Exhaust Manifold To Cylibder Head.

4
Double Ended Stud, Mounting
MSRP $6.50

Side. Use Up To 06/04/2018. M8x1.25xm6x1x75.50. Exhaust Manifold To Cylibder Head.

6
Shield
MSRP $16.20

Exhaust Manifold Shield

Use Up To 06/04/2018. Right And Left Side. Gasoline Engine Manifold Only.

7
U Nut, Mounting
MSRP $9.85

U Nut

Flange Attachment. [.375-16]. Exhaust Pipe to Converter. Mega Cab. Screw to Manifold. Exhaust Manifold. Converter to Manifold. Y-Pipe to Exhaust. Quad Cab. Regular Cab.

8
Hex Flange Head Bolt, Mounting
MSRP $17.60

Hex Flange Head Bolt

.375-16x2.50. Front Exhaust Pipe To Exhaust Manifold.

9
Double Ended Stud, Mounting
MSRP $13.00

M8x1.25xm6x1.00x73.00. Side. M8x1.25xm6x1.00x75.50. Use Up To 06/04/2018. Corner. Exhaust Manifold To Cylibder Head.

Manifolds and Vacuum Fittings for 2015 Ram 1500 #1
No.
Part # / Description / Price
1
Intake Manifold Kit
MSRP $785.00

Engine Intake Manifold Kit

ENGINE INTAKE

2
Throttle Body To Intake Seal
MSRP $20.70

NOT Included With Long Block Engine Install Kit. Intake Manifold To Cylinder Head.

4
Hex Head Bolt And Coned Washer, Mounting
MSRP $6.20

68190715AA,AB Supersede To 68190715AC Intake Manifold Kit. Item 3 Ball Stud & Item 4 Bolts Are No Longer Included & Must Be Ordered Seperate. Intake Manifold To Cylinder Heads. M6x1.00x81.00.

5
PCV Seal
MSRP $19.50

Rectangle. Rectangile. System. Square. Large, Small Seal Is Seviced With The Valve Only. NOT Included With Long Block Engine Install Kit or Upper Engine Gasket Kit, Must Order Separate. Small Seal Is Serviced With The Valve Only.

5
PCV Seal
MSRP $4.25

NOT Included With Long Block Engine Install Kit. System. Large O Ring Small O Ring Is Serviced With PCV Valve Only.

7
Engine Pad
MSRP $71.85

Round Pad In Rear Of Intake Manifold Is Serviced With Intake Manifold. Engine Valley. Round Pad In Rear Of Intake Manifold Serviced In Manifold Kit. Valley Cover.

8
Insulator Cover, Foam
MSRP $46.35

Make Up Air Insulator. Inbetween Oil Fill Housing And Fuel Rail.

9
Oil Filler Cap
MSRP $20.85

Includes O-ring. With 5W20 Markings. Includes Oil Ring.

10
O Ring
MSRP $9.25

Oil Filler Cap O Ring

Serviced With Oil Filler Cap.

11
Hex Flange Head Bolt, Mounting
MSRP $2.25

M5.74x1.81x21.50. Fuel Rail to Intake Manifold. Bracket To Intake Manifold. Intake Short Runner Valve To Intake Manifold. Intake Short Running Valve Actuator Valve To Intake Manifold.
