Home 2008 Dodge Ram 3500 ST 5.9L L6 - Diesel Rear Suspension and Cradle

Rear Suspension and Cradle for 2008 Dodge Ram 3500

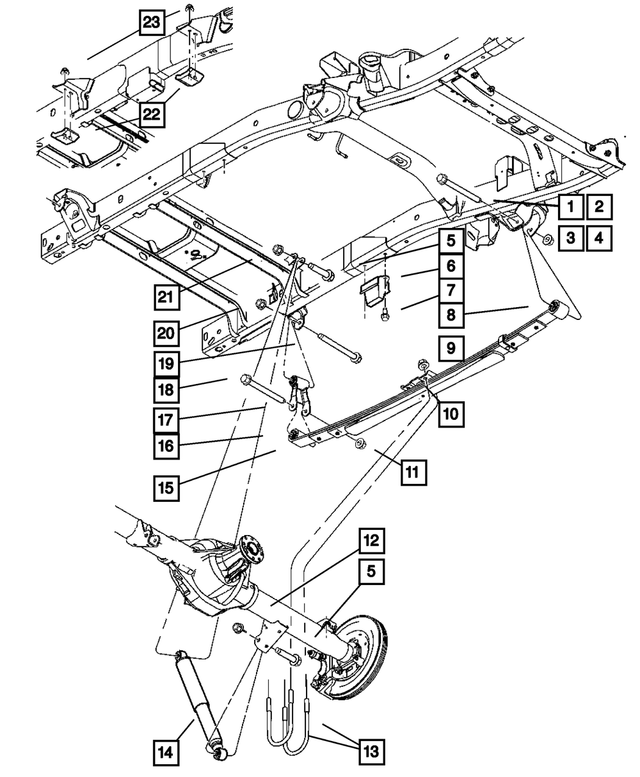

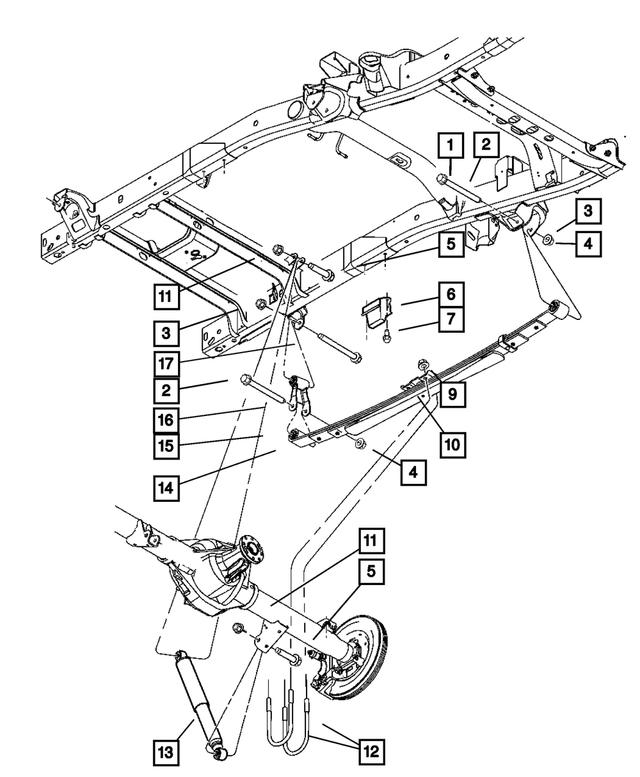

Rear Suspension and Cradle for 2008 Dodge Ram 3500 #0

Rear Suspension and Cradle for 2008 Dodge Ram 3500 #1

Rear Suspension and Cradle for 2008 Dodge Ram 3500 #0

1

10

12

13

14

15

16

17

2

2

3

3

4

4

5

5

6

7

9

No.

Part # / Description / Price

N/A

6505249AA - Rear Suspension: Hex Flange Head Tapping Screw for Mopar Image image

Hex Flange Head Tapping Screw, Mounting

Mopar

Mopar

Hex Flange Head Tapping Screw

M11x1.50x30.00. OverSized Repair Screw for Item 5. Jounce Bumper

N/A

6101696 - Rear Suspension: Hex Flange Lock Nut, Mounting for Mopar Image image

Hex Flange Lock Nut, Mounting

MSRP $6.75

Mopar

Mopar

M10x1.50. Drive Shaft Center Bearing to Center Bearing Bracket

N/A

52121116AA - Rear Suspension: Spring Bumper for Mopar Image image

Auxillary Spring Bumper

MSRP $49.65

Mopar

Mopar

Spring Bumper

Rear.

1

6508549AA - Rear Suspension: Hex Flange Head Bolt, Mounting for Mopar Image image

Hex Flange Head Bolt, Mounting

Mopar

Mopar

M16x2.00x125.00. Spring to Frame

2

6504782 - Rear Suspension: Truss Head Screw, Mounting for Mopar Image image

Truss Head Screw, Mounting

MSRP $22.20

Mopar

Mopar

M16x2.00x144.50. Leaf Spring to Shackle

3

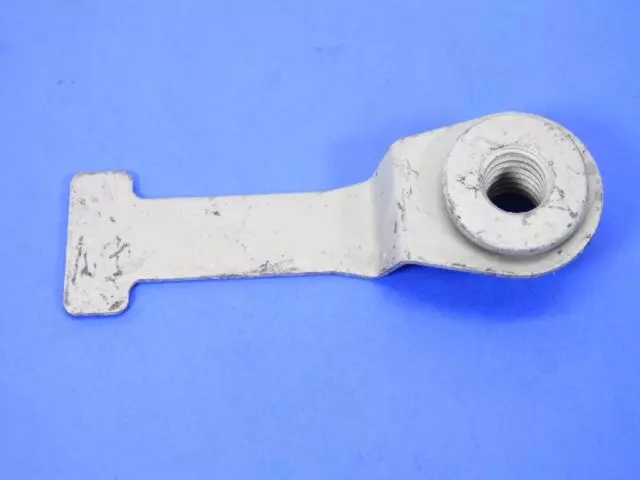

6507082AA - Rear Suspension: Hex Flange Lock Nut And Retainer, Mounting for Mopar Image image

Hex Flange Lock Nut And Retainer, Mounting

Mopar

Mopar

M16x2.00x105.00. Shackle to Frame

4

6102252AA - Rear Suspension: Hex Flange Lock Nut, Mounting for Mopar Image image

Hex Flange Lock Nut, Mounting

MSRP $12.60

Mopar

Mopar

M16x2.00. Lower Control Arm to Cradle

5

6507654AA - Rear Suspension: Hex Flange Head Bolt, Mounting for Mopar Image image

Hex Flange Head Bolt

MSRP $17.95

Mopar

Mopar

Hex Flange Head Bolt, Mounting

M14x2.00x90.00. Front Shock Absorber To Lower Control Arm

6

52113464AC - Rear Suspension: Jounce Bumper for Mopar Image image

Jounce Bumper

MSRP $52.30

Mopar

Mopar

JOUNCE

7

6503183 - Rear Suspension: Hex Flange Head Tapping Screw, Mounting for Mopar Image image

Hex Flange Head Tapping Screw

MSRP $6.95

Mopar

Mopar

Hex Flange Head Tapping Screw, Mounting

Left Bracket to Trans

9

6502698 - Rear Suspension: Hex Flange Lock Nut, Mounting for Mopar Image image

Hex Flange Lock Nut, Mounting

MSRP $11.95

Mopar

Mopar

M14x2.00. Differential Cover to Frame

10

52106916AB - Rear Suspension: Spring U-bolt Plate for Mopar Image image

Spring U-bolt Plate, Mounting

MSRP $143.00

Mopar

Mopar

Spring U-bolt Plate

Upper

12

52113562AA - Rear Suspension: U-bolt, Mounting for Mopar Image image

U-bolt, Mounting

MSRP $40.20

Mopar

Mopar

Rear Axle to Leaf Spring

12

52113567AB - Rear Suspension: U-bolt for Mopar Image image

U-bolt, Mounting

MSRP $33.35

Mopar

Mopar

U-bolt

Rear Axle to Leaf Spring

13

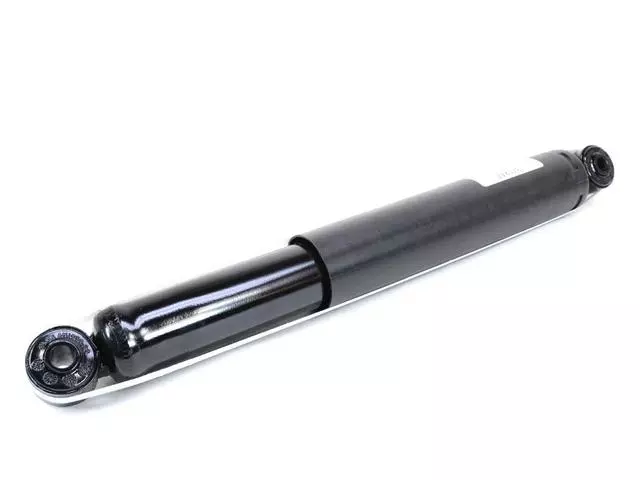

52113712AF - Rear Suspension: Suspension Shock Absorber for Mopar Image image

Suspension Shock Absorber ²

Mopar

Mopar

Rear. [Z8D,Z8E]

13

52122501AE - Rear Suspension: Suspension Shock Absorber for Mopar Image image

Suspension Shock Absorber ²

Mopar

Mopar

Rear. [Z3D,Z3E]

13

52113676AE - Rear Suspension: Suspension Shock Absorber for Mopar Image image

Suspension Shock Absorber ²

Mopar

Mopar

Rear. [Z8B-AM2]

13

52110144AE - Rear Suspension: Suspension Shock Absorber for Mopar Image image

Suspension Shock Absorber ²

Mopar

Mopar

Rear

13

52113675AE - Rear Suspension: Suspension Shock Absorber for Mopar Image image

Suspension Shock Absorber ²

Mopar

Mopar

Rear. [Z3D,Z3E]

13

52122036AC - Rear Suspension: Suspension Shock Absorber for Mopar Image image

Suspension Shock Absorber ²

Mopar

Mopar

Rear. [Z8B+AM2]

13

52113499AE - Rear Suspension: Suspension Shock Absorber for Mopar Image image

Suspension Shock Absorber ²

Mopar

Mopar

Rear

14

52113319AF - Rear Suspension: Rear Leaf Spring for Mopar Image image

Rear Leaf Spring

Mopar

Mopar

[ZDR,ZSR]-With Bushings

14

52121421AD - Rear Suspension: Rear Leaf Spring for Mopar Image image

Rear Leaf Spring

Mopar

Mopar

[ZJR,ZXR]-With Bushings

14

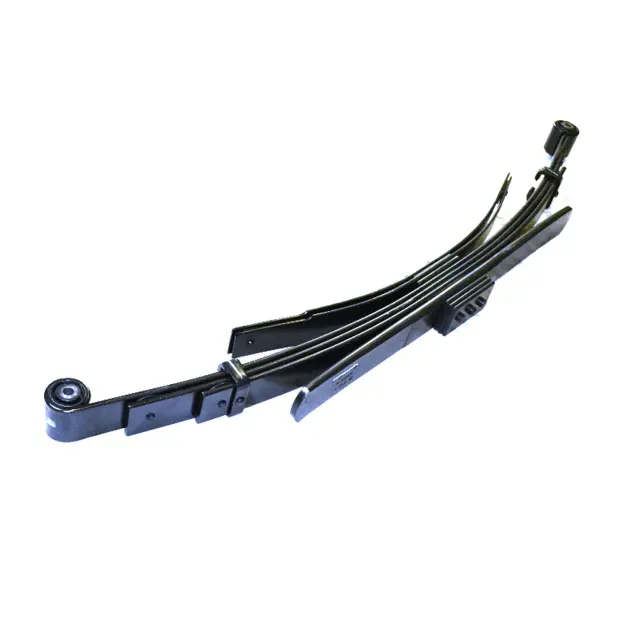

52113320AE - Rear Suspension: Rear Leaf Spring for Mopar Image image

Rear Leaf Spring

Mopar

Mopar

[ZHR,ZWR]-With Bushings

14

52121420AF - Rear Suspension: Rear Leaf Spring for Mopar Image image

Rear Leaf Spring

Mopar

Mopar

[ZBR,ZPR]-With Bushings

15

52113070AC - Rear Suspension: Spring Bushing for Mopar Image image

Spring Bushing, Front Or Rear

MSRP $108.00

Mopar

Mopar

Spring Bushing

[ZBT,ZPT]

16

52113520AA - Rear Suspension: Spring Shackle for Mopar Image image

Spring Shackle

Mopar

Mopar

17

6507576AA - Rear Suspension: Hex Flange Head Bolt, Mounting for Mopar Image image

Hex Flange Head Bolt, Mounting

MSRP $28.45

Mopar

Mopar

M16x2.00x145.00. Shackle to Frame

² This part contains hazardous materials. Extra shipping costs apply.

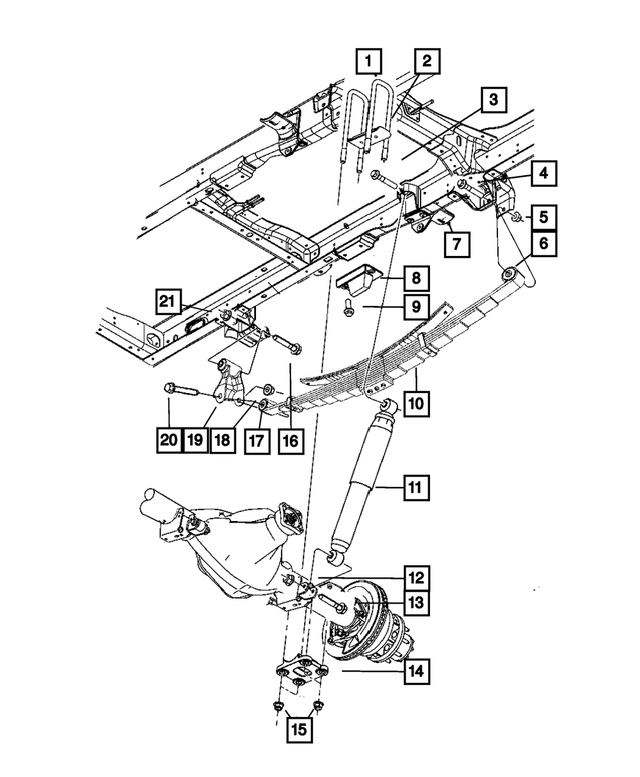

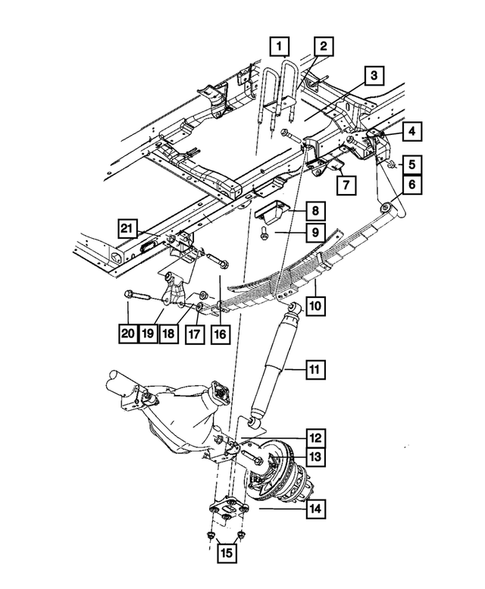

Rear Suspension and Cradle for 2008 Dodge Ram 3500 #1

1

10

11

12

13

14

15

16

17

19

2

21

3

4

5

6

7

8

9

No.

Part # / Description / Price

1

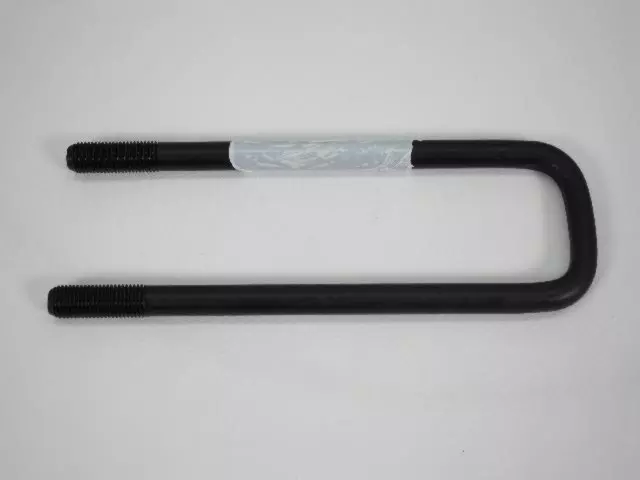

52121678AB - Rear Suspension: U-bolt, Mounting for Mopar Image image

U-bolt

MSRP $72.45

Mopar

Mopar

U-bolt, Mounting

Rear Axle to Leaf Spring

2

52855618AB - Rear Suspension: Spring U-bolt Plate, Upper for Mopar Image image

Spring U-bolt Plate, Upper

Mopar

Mopar

Upper. Mounting

3

6502963 - Rear Suspension: Hex Flange Head Bolt, Mounting for Mopar Image image

Hex Flange Head Bolt, Mounting

Mopar

Mopar

M14x2.00x105.00. Rear Lower Control Arm to Axle

4

6504782 - Rear Suspension: Truss Head Screw, Mounting for Mopar Image image

Truss Head Screw, Mounting

MSRP $22.20

Mopar

Mopar

M16x2.00x144.50. Leaf Spring to Shackle

5

6102252AA - Rear Suspension: Hex Flange Lock Nut, Mounting for Mopar Image image

Hex Flange Lock Nut, Mounting

MSRP $12.60

Mopar

Mopar

M16x2.00. Lower Control Arm to Cradle

6

52014054AA - Rear Suspension: Spring Bushing, Front for Mopar Image image

Spring Bushing, Rear

Mopar

Mopar

Spring Bushing, Front

7

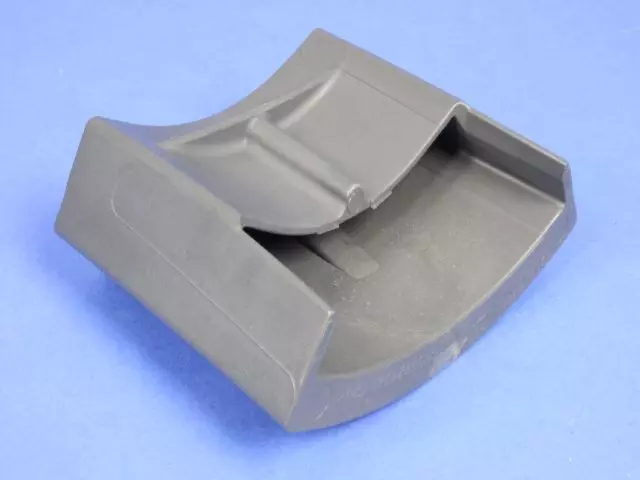

68039293AB - Rear Suspension: Auxillary Spring Bumper for Mopar Image image

Spring Bumper, Auxiliary

Mopar

Mopar

Auxillary Spring Bumper

Rear. Jounce

8

52855637AB - Rear Suspension: Jounce Bumper for Mopar Image image

Jounce Bumper

MSRP $86.55

Mopar

Mopar

JOUNCE

9

6503183 - Rear Suspension: Hex Flange Head Tapping Screw, Mounting for Mopar Image image

Hex Flange Head Tapping Screw

MSRP $6.95

Mopar

Mopar

Hex Flange Head Tapping Screw, Mounting

Left Bracket to Trans

10

52014036AA - Rear Suspension: Rear Leaf Spring for Mopar Image image

Rear Leaf Spring

Mopar

Mopar

[ZFU,ZUU]-With Bushings

10

52121552AC - Rear Suspension: Rear Leaf Spring for Mopar Image image

Rear Leaf Spring

Mopar

Mopar

[ZFR,ZUR]-With Bushings

10

52121553AC - Rear Suspension: Rear Leaf Spring for Mopar Image image

Rear Leaf Spring

Mopar

Mopar

[ZFS,ZUS]-With Bushings

10

52014035AA - Rear Suspension: Rear Leaf Spring for Mopar Image image

Rear Leaf Spring

Mopar

Mopar

[ZFT,ZUT]-With Bushings

11

52014560AA - Rear Suspension: Suspension Shock Absorber for Mopar Image image

Suspension Shock Absorber

Mopar

Mopar

Rear

11

52121572AE - Rear Suspension: Suspension Shock Absorber for Mopar Image image

Suspension Shock Absorber

Mopar

Mopar

Rear

12

6502698 - Rear Suspension: Hex Flange Lock Nut, Mounting for Mopar Image image

Hex Flange Lock Nut, Mounting

MSRP $11.95

Mopar

Mopar

M14x2.00. Differential Cover to Frame

13

6507654AA - Rear Suspension: Hex Flange Head Bolt, Mounting for Mopar Image image

Hex Flange Head Bolt

MSRP $17.95

Mopar

Mopar

Hex Flange Head Bolt, Mounting

M14x2.00x90.00. Front Shock Absorber To Lower Control Arm

14

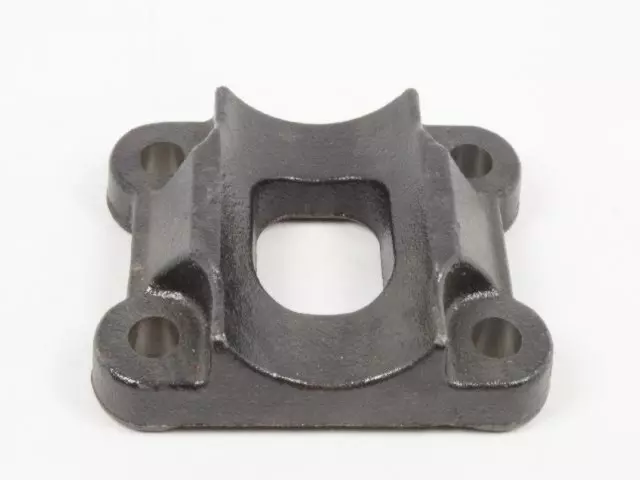

52121956AB - Rear Suspension: Rear Spring U-bolt Plate, Lower for Mopar Image image

Rear Spring U-bolt Plate, Lower

Mopar

Mopar

Mounting

15

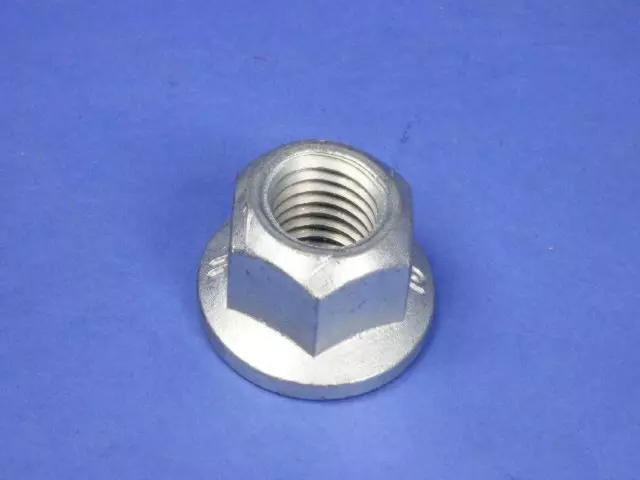

6507460AA - Rear Suspension: Hex Flange Lock Nut, Mounting for Mopar Image image

Hex Flange Lock Nut, Mounting

MSRP $10.60

Mopar

Mopar

M20x2.50. Rear Axle to Leaf Spring

16

6507576AA - Rear Suspension: Hex Flange Head Bolt, Mounting for Mopar Image image

Hex Flange Head Bolt, Mounting

MSRP $28.45

Mopar

Mopar

M16x2.00x145.00. Shackle to Frame

17

52113070AC - Rear Suspension: Spring Bushing, Rear for Mopar Image image

Spring Bushing, Front Or Rear

MSRP $108.00

Mopar

Mopar

Spring Bushing, Rear

[ZBT,ZPT]

19

52113520AA - Rear Suspension: Spring Shackle for Mopar Image image

Spring Shackle

Mopar

Mopar

21

6507082AA - Rear Suspension: Hex Flange Lock Nut And Retainer, Mounting for Mopar Image image

Hex Flange Lock Nut And Retainer, Mounting

Mopar

Mopar

M16x2.00x105.00. Shackle to Frame
