Gear Train for 2005 Chrysler 300

Diagram 1 1. Input Shaft Diagram 2 2. Check Ball Diagram 3 3. Clutch Retainer Diagram 4 4. Clutch Retainer Diagram 5 5. Pin Diagram 6 6. Plunger Diagram 7 7. Parking Wheel Lock Diagram 8 8. Spring Disc Diagram 9 9. Planetary Carrier
No.
Part # / Description / Price
3
52108180AA - Automatic Transmission 5 Speed [DGJ]: Parking Wheel Lock for Mopar Image image
Transmission Parking Sprag
52108180AA
Mopar Mopar

Parking Wheel Lock

View Details
5

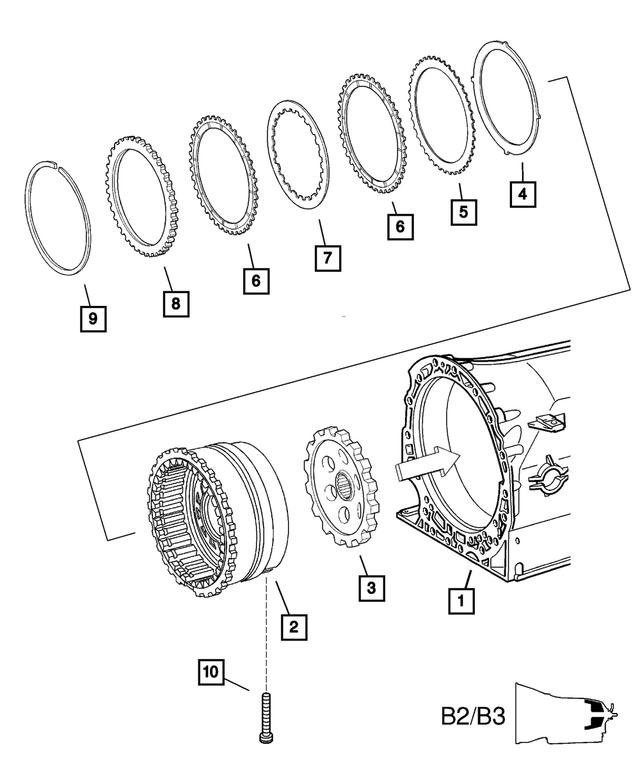

52108013AA - Automatic Transmission 5 Speed [DGJ]: Outer Disc for Mopar Image image
Outer Disc
MSRP $21.20
$14.49
52108013AA
Mopar Mopar

[1.8mm]. [1.8 mm].

6
68058315AA - Automatic Transmission 5 Speed [DGJ]: Outer Disc for Mopar Image image
Outer Disc
MSRP $67.60
$46.52
68058315AA
Mopar Mopar

7
52108015AA - Automatic Transmission 5 Speed [DGJ]: Inner Disc for Mopar Image image
Inner Disc
MSRP $28.20
$19.32
52108015AA
Mopar Mopar

[1.8 mm].

8
52108014AA - Automatic Transmission 5 Speed [DGJ]: Outer Disc for Mopar Image image
Outer Disc
MSRP $34.25
$23.40
52108014AA
Mopar Mopar

[6.5mm]. [6.5 mm].

9
52107979AA - Automatic Transmission 5 Speed [DGJ]: Snap Ring for Mopar Image image
Snap Ring
MSRP $10.35
$7.02
52107979AA
Mopar Mopar

[4.1 mm]. [4.1mm].

9
52107982AA - Automatic Transmission 5 Speed [DGJ]: Snap Ring for Mopar Image image
Snap Ring
MSRP $13.95
$9.49
52107982AA
Mopar Mopar

[3.2mm]. [ 3.2 mm].

9
52107980AA - Automatic Transmission 5 Speed [DGJ]: Snap Ring for Mopar Image image
Snap Ring
MSRP $17.15
$11.67
52107980AA
Mopar Mopar

[3.8mm]. [ 3.8 mm].

9
52107981AA - Automatic Transmission 5 Speed [DGJ]: Snap Ring for Mopar Image image
Snap Ring
52107981AA
Mopar Mopar

[3.5mm]. [ 3.5 mm].

View Details
9
52107983AA - Automatic Transmission 5 Speed [DGJ]: Snap Ring for Mopar Image image
Snap Ring
MSRP $10.85
$7.42
52107983AA
Mopar Mopar

[2.9 mm]. [2.9mm].

10
52108205AA - Automatic Transmission 5 Speed [DGJ]: Screw for Mopar Image image
Torx Head Bolt
MSRP $5.05
$3.34
52108205AA
Mopar Mopar

Screw

Torque Converter Housing To Transmission Case. M8x60. Case to Bell Housing.
