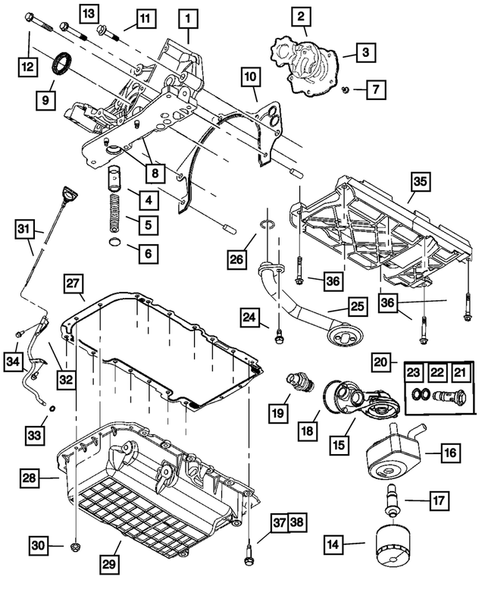

Engine Oiling for 2004 Chrysler Pacifica
Mopar See Note For Build Date Info. Build Date Codes Are listed On Intake Plenum Tag.. Up To And Including Build Date TDDE92363XXXXX
Mopar See Note For Build Date Info. Build Date Codes Are listed On Intake Plenum Tag.. Up To And Including Build Date TDDE92363XXXXX
Mopar See Note For Build Date Info. Build Date Codes Are listed On Intake Plenum Tag.. After Build Date TDDE92373XXXXX
Mopar Flange Head Screw
M6X1.00X18.00. Oil Pump Cover To Front Timing Case Cover
Mopar Build Date Codes Are listed On Intake Plenum Tag. After Build Date TDDE92373XXXXX
Mopar Bolt, Oil Pump To Block
M10X1.50X70.00. Oil Pump Body To Cylinder Block
Mopar Hex Head Screw And Washer, Oil Pump To Block
M8X1.25X55.00. Oil Pump Body To Cylinder Block
Mopar Bolt And Washer, Oil Pump To Block
M8X1.25X35.00. Primary Tensioner Arm To Cylinder Block
Mopar See Note. [3/4-16] With Engine Production Part Number 04892603AA Or 04892480AA
Mopar Oil Pressure Switch
4792355 Serviced in Valve Pkg
Mopar Hex Head Screw And Washer
M8X1.25X25.25. Engine Oil Pick Up Tube To Engine Oil Pump
Mopar Build Date Codes Are listed On Intake Plenum Tag. After Build Date TDDE92373XXXXX
Mopar Build Date Codes Are listed On Intake Plenum Tag. Up To And Including Build Date TDDE92363XXXXX
Mopar Build Date Codes Are listed On Intake Plenum Tag. Stamping # 04792661AC After Build Date TDDE92373XXXXX
Mopar 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
Mopar M8 x 1.25. Liquid Line/Filter Drier to Shock Tower Mounting
Mopar Screw
M5.74X1.81X21.50. Oil level Indicator Tube To Cylinder Block
Mopar Bearing Cap Bolt
[M8X1.25X105.00]. Main Bearing Cap To Engine Block
