Crankshaft, Piston, Drive Plate, Flywheel, and Damper for 2019 Dodge Challenger
No.
Part # / Description / Price
N/A
Crankshaft Bearing Kit
MSRP $31.15
B Grade. See Note. One [1] Package Contains One [1] Upper And One [1] Lower Main Bearing. Cylinders 1-2-3-4-5. Mega Cab. Standard.
N/A
Crankshaft Bearing Kit
MSRP $26.10
Oversize .008. #1,2,3,5. C Grade. See Note. Cylinders 1,2,3,4,5. Mega Cab. One [1] Package Contains One [1] Upper And One [1] Lower Main Bearing. .008mm O/S. .008mm U/S.
1
Hex Head Bolt And Coned Washer, Mounting
MSRP $9.15
M14x1.5x102.00. M14x1.50x102.00. Mega Cab. With 3/4`` Threads. M14x1.5x102.0. Damper/Pulley to Crankshaft. [mj9x1.0x45.75]. Crankshaft Dampner. Quad Cab. Regular Cab.
3
4
Crankshaft
MSRP $1,240.00
Not Interchageable With 2012 And Below Crankshaft. New Part Number For 2013. Not Compatable With 2012 And Below Crankshaft. Not Interchanable With 2012 And Below Crankshaft.
7
Crankshaft Bearing Kit
MSRP $22.70
See Note. Cylinders 1-2-3-4-5. Undersize .008. 1,2,3,5. One [1] Package Contains One [1] Upper And One [1] Lower Main Bearing. Mega Cab. A Grade. [# 1,2,3,4,5]. .008mm U/S. .008mm O/S.
10
Crankshaft Thrust Bearing Kit
MSRP $24.65
Std. Front Thurst. See Note. Mega Cab. Damper To Crankshaft. Contains Front And Rear Thrust Washers. Crankshaft Thurst Washer. Includes Front And Rear Washers.
11
Pilot Bearing
MSRP $35.40
Manual Transmission. Bearing And Sleeve. Installation. For 2.5 Engine, Serviced in Flywheel.
12
Crankshaft Rear Oil Seal Retainer
MSRP $125.00
NOT Included With Long Block Engine Install Kit. Includes Rear Crankshaft Oil Seal. Mega Cab. Includes Items 18,19. Includes Gasket,Seal,Pins,I-Sheet. Includes Items 16,19. Includes Oil Seal And Mounting Bolts. Includes Items 17,19. Includes Items 19, 20.
14
Hex Flange Head Bolt, Mounting
MSRP $2.55
M6x1.00x28.00. M6x1.00x24.00. M6x1.0x24.0. Rear Mail Oil Seal Retainer To Crankshaft. Rear Cranshaft Oil Seal Retainer To Cylinder Block.
15
Flywheel, Mounting
MSRP $1,400.00
Flywheel
Manual Transmission. Ring Gear Is Serviced With The Flywheel Only.
16
Hex Head Bolt, Mounting
MSRP $8.65
[m10x1.00x26.00]. [M10x1.0x26.0]. Flywheel Mounting. Manual Transmission Flywheel To Crankshaft.
No.
Part # / Description / Price
N/A
Crankshaft Bearing Kit
MSRP $26.10
Oversize .008. #1,2,3,5. C Grade. See Note. Cylinders 1,2,3,4,5. Mega Cab. One [1] Package Contains One [1] Upper And One [1] Lower Main Bearing. .008mm O/S. .008mm U/S.
N/A
Crankshaft Bearing Kit
MSRP $31.15
B Grade. See Note. One [1] Package Contains One [1] Upper And One [1] Lower Main Bearing. Cylinders 1-2-3-4-5. Mega Cab. Standard.
1
Hex Head Bolt And Coned Washer, Mounting
MSRP $9.15
M14x1.5x102.00. M14x1.50x102.00. Mega Cab. With 3/4`` Threads. M14x1.5x102.0. Damper/Pulley to Crankshaft. [mj9x1.0x45.75]. Crankshaft Dampner. Quad Cab. Regular Cab.
3
4
Crankshaft
MSRP $1,240.00
Not Interchageable With 2012 And Below Crankshaft. New Part Number For 2013. Not Compatable With 2012 And Below Crankshaft. Not Interchanable With 2012 And Below Crankshaft.
7
Crankshaft Bearing Kit
MSRP $22.70
See Note. Cylinders 1-2-3-4-5. Undersize .008. 1,2,3,5. One [1] Package Contains One [1] Upper And One [1] Lower Main Bearing. Mega Cab. A Grade. [# 1,2,3,4,5]. .008mm U/S. .008mm O/S.
10
Crankshaft Thrust Bearing Kit
MSRP $24.65
Std. Front Thurst. See Note. Mega Cab. Damper To Crankshaft. Contains Front And Rear Thrust Washers. Crankshaft Thurst Washer. Includes Front And Rear Washers.
12
Crankshaft Rear Oil Seal Retainer
MSRP $125.00
NOT Included With Long Block Engine Install Kit. Includes Rear Crankshaft Oil Seal. Mega Cab. Includes Items 18,19. Includes Gasket,Seal,Pins,I-Sheet. Includes Items 16,19. Includes Oil Seal And Mounting Bolts. Includes Items 17,19. Includes Items 19, 20.
14
Hex Flange Head Bolt, Mounting
MSRP $2.55
M6x1.00x28.00. M6x1.00x24.00. M6x1.0x24.0. Rear Mail Oil Seal Retainer To Crankshaft. Rear Cranshaft Oil Seal Retainer To Cylinder Block.
17
Hex Head Lock Bolt, Mounting, Automatic Transmission
MSRP $6.70
Hex Head Lock Bolt, Mounting
Torque Converter Drive Plate To Cylinder Block. [m6x1.00x90.00]. Mega Cab. M10x1.00x18.00. Quad Cab. Regular Cab. Plate To Crankshaft.
No.
Part # / Description / Price

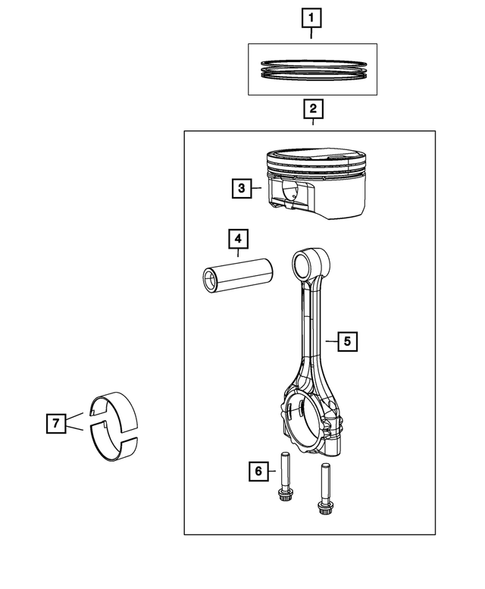

6
Connecting Rod Bolt
MSRP $5.60
[m10x1.00x45.75]. Connecting Rod Cap To Connecting Rod Cylinders 1,3,5,7. Cylinders 2,4,6,8.
No.
Part # / Description / Price
6
Connecting Rod Bolt
MSRP $5.60
[m10x1.00x45.75]. Connecting Rod Cap To Connecting Rod Cylinders 1,3,5,7. Cylinders 2,4,6,8.
